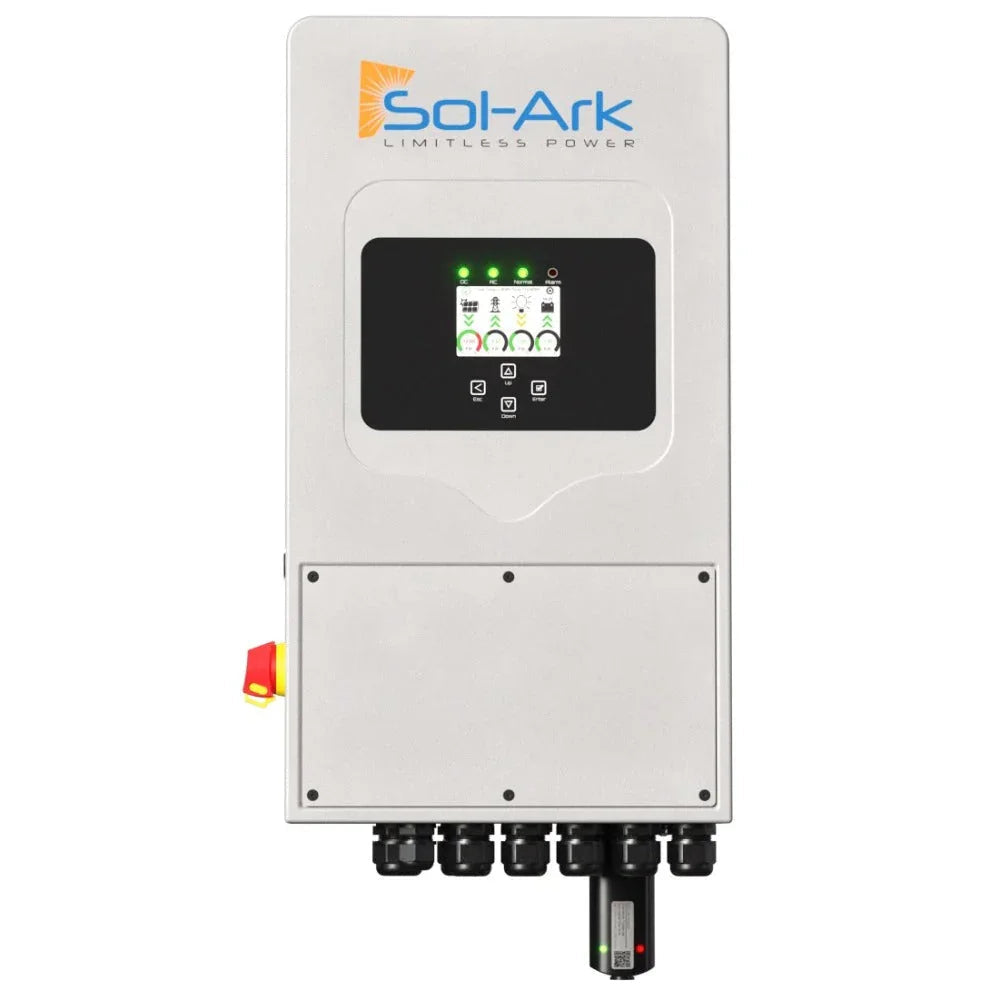

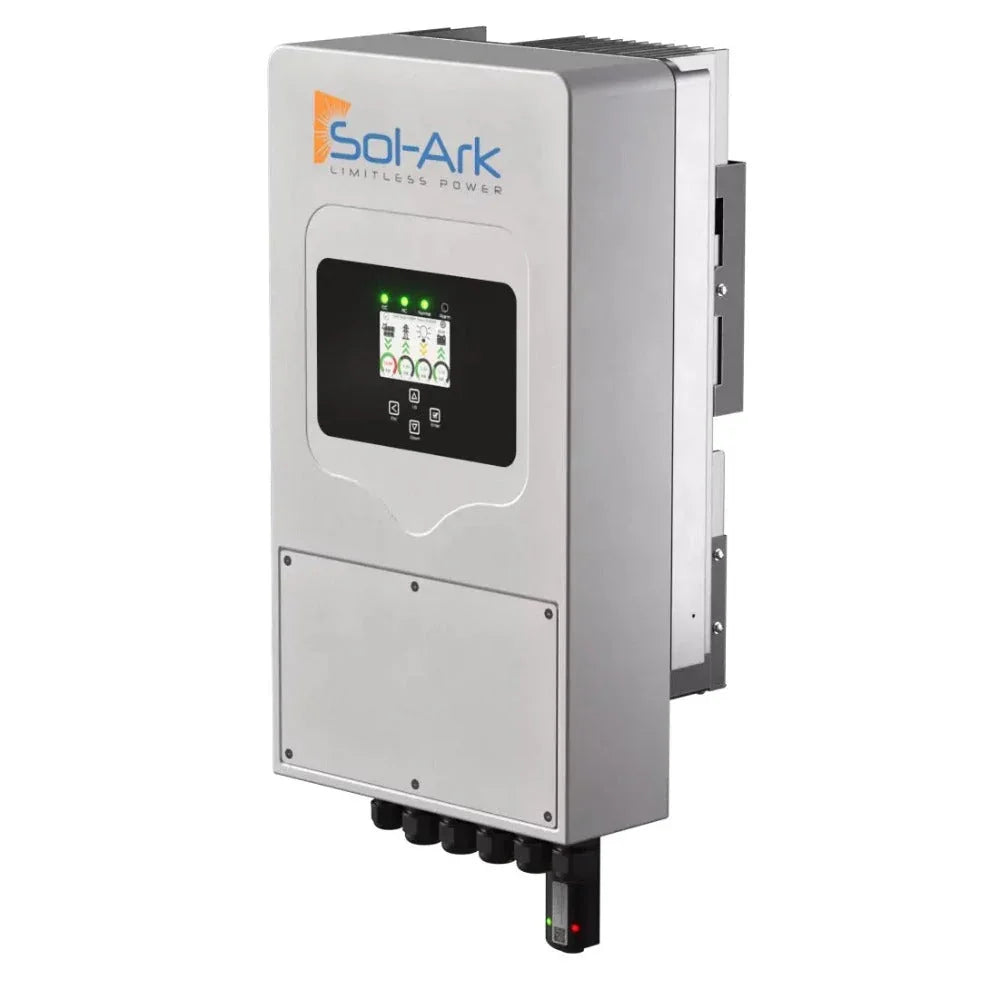

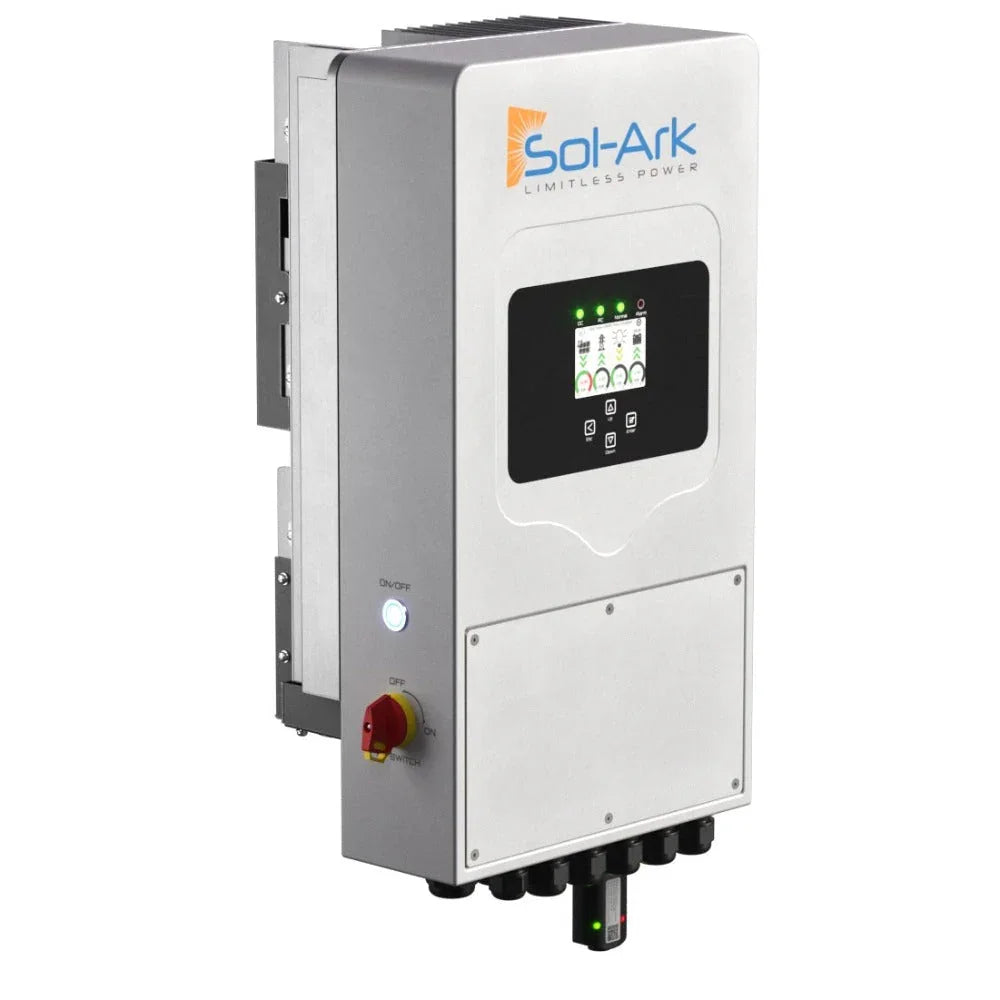

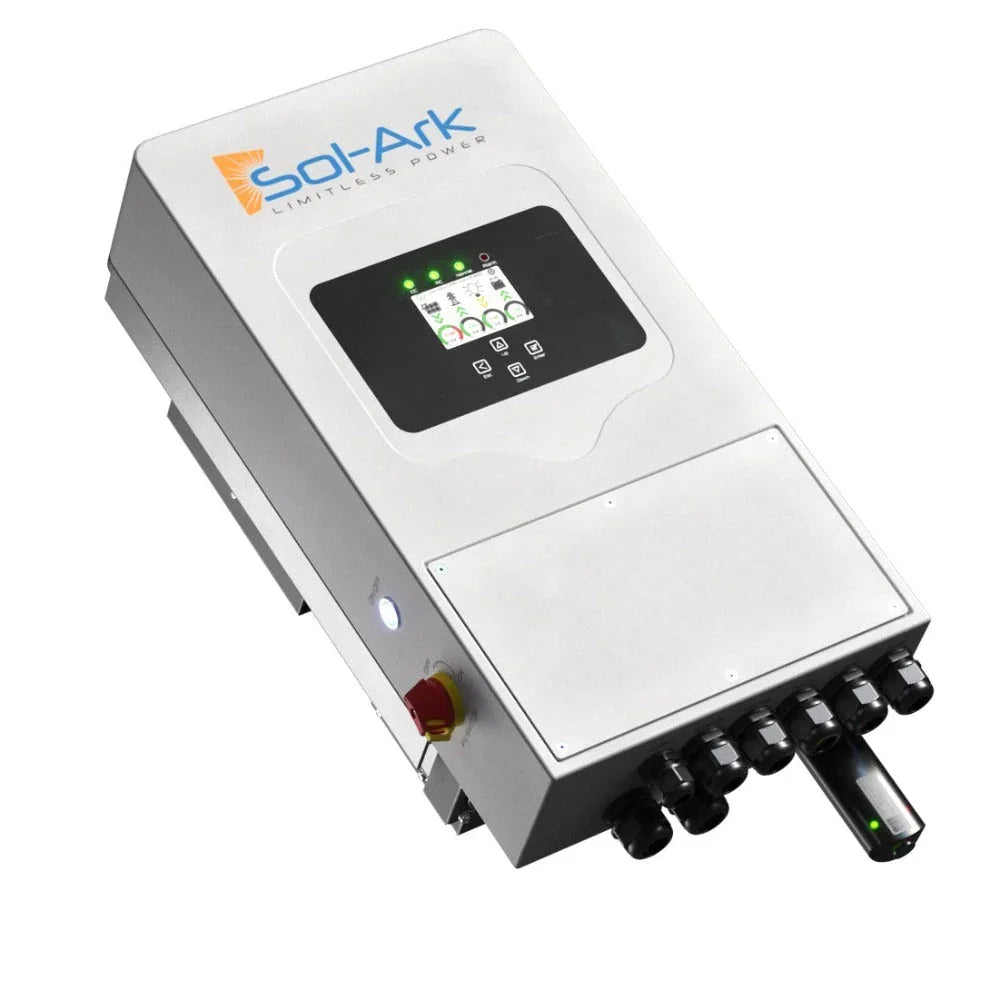

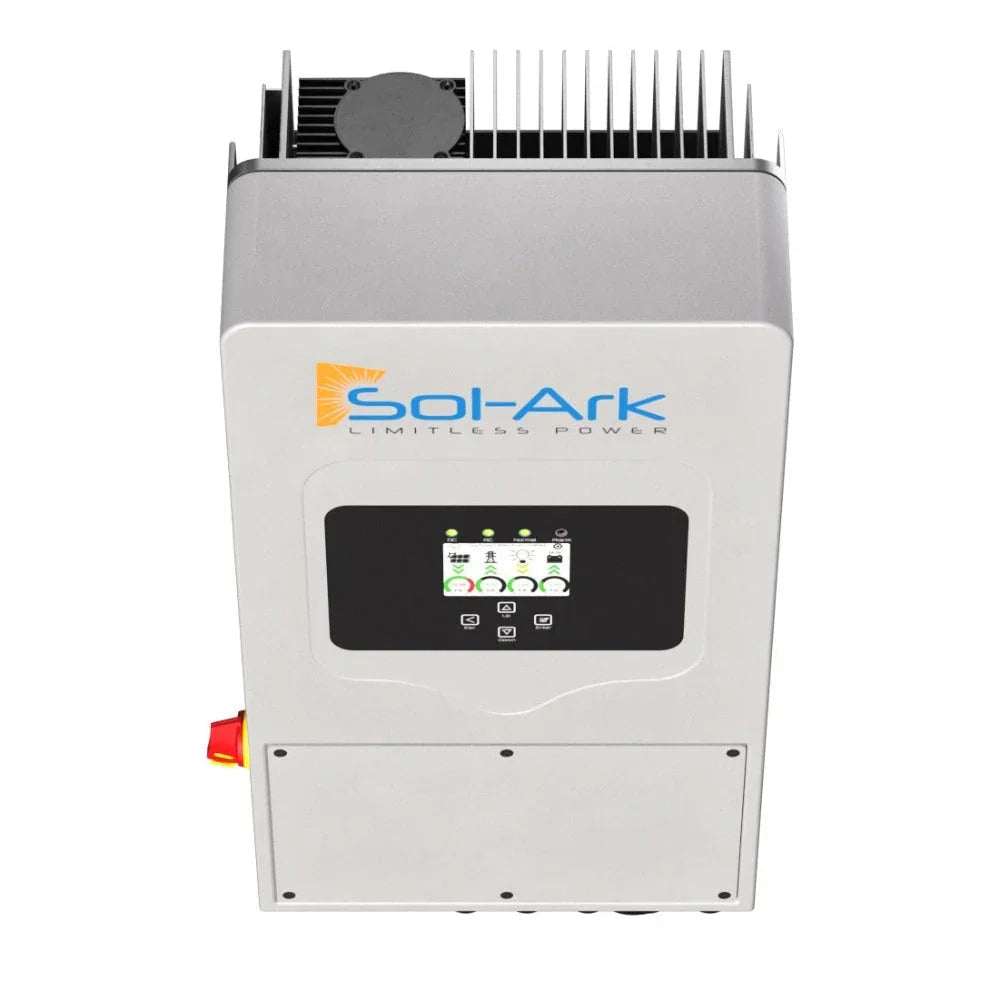

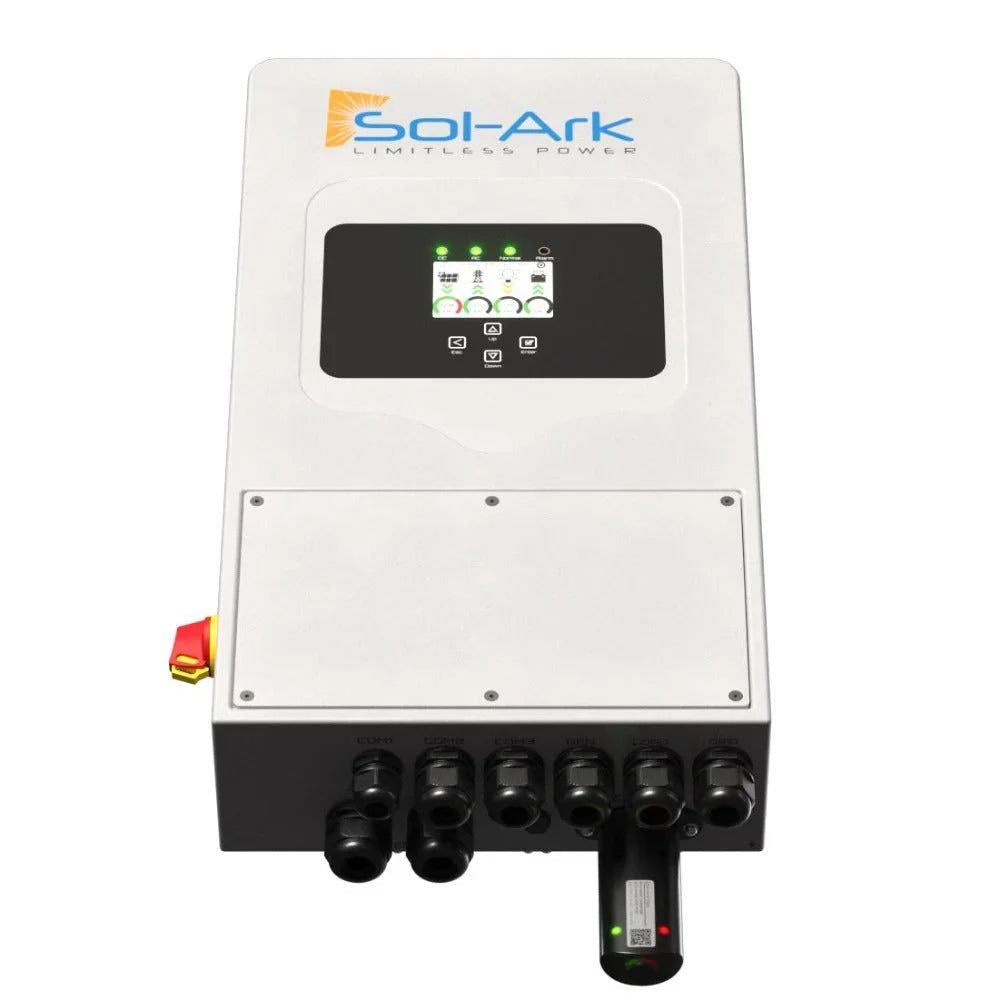

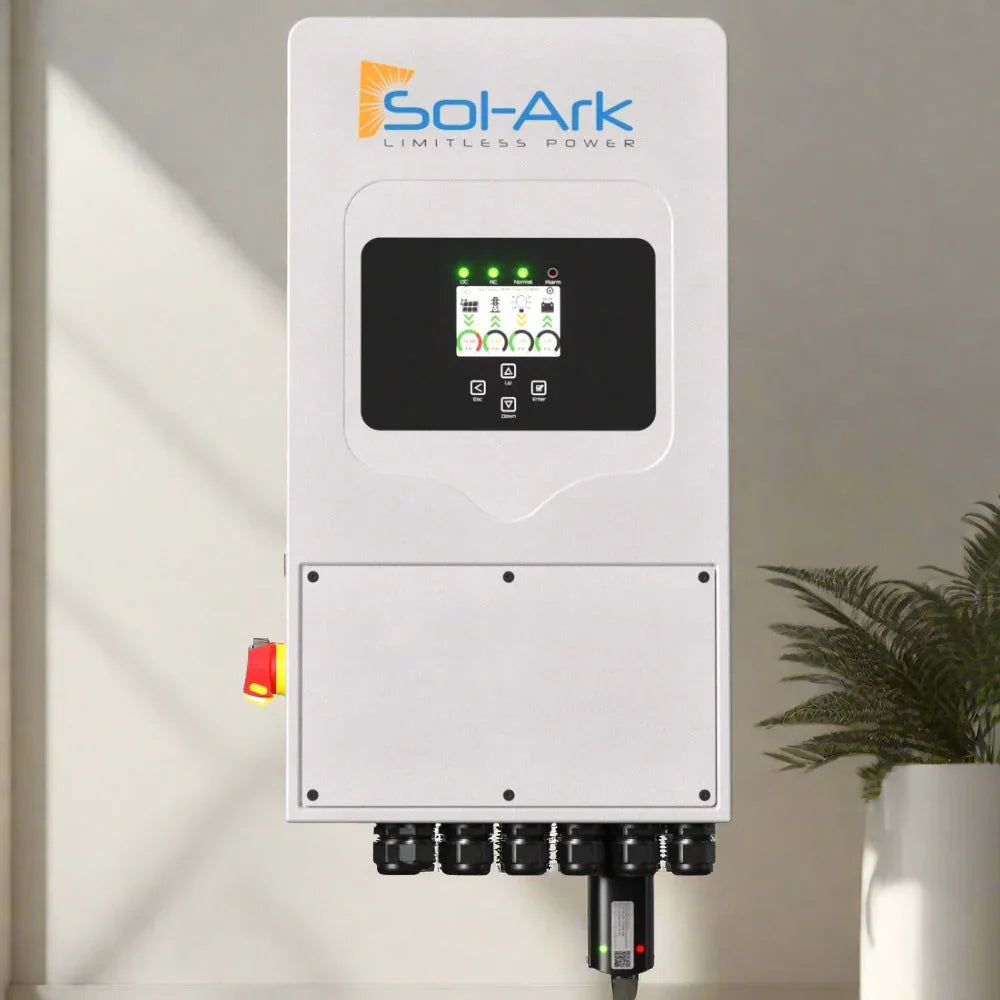

Sol-Ark 5K Single-Phase Hybrid Inverter | 5K-1P | 10 Year Warranty

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

SOL-ARK 5K/8K-1P Hybrid Inverter Specification

• Inverter Type: Hybrid inverter
• Maximum/Peak Efficiency [%]: 97.6
• Transformer / Transformerless: Transformerless DC
• DC Power Rating [W]: 10400
• Max. Input Power [W]: 10400
• Max. Input Voltage [V]: 500
• Max. Input Current [A]: 40
• Min. DC voltage / start voltage [V]: 150
• Min. DC voltage / start voltage [V]: 150
• Number of DC String Inputs (Inlets): 4
• Number of MPP Trackers: 2
• Max. Input Power per MPPT [W]: 5200
• Max. Input Voltage per MPPT [V]: 500
• Max. Input Current per MPPT [A]: 20
• Voltage Lower Limit for MPP Range [V]: 125
• Voltage Upper Limit for MPP Range [V]: 425
• DC Disconnection Type: Integrated
• Reverse-Polarity Protection: true
• AC Power Rating [W]: 4800
• Nominal AC Power [W]: 4800
• Max. AC Power [W]: 4800
• AC voltage range [V]: 114-123
• AC grid frequency [Hz]: 60
• Max. output current [A]: 40
• Nominal AC Voltage [V]: 120
• Maximum AC Voltage Range [V]: 123
• Nominal AC Frequency [Hz], range [Hz-Hz]: 60
• Max. AC Line Current [A]: 50
• AC Connection Type: L1/Neutral/Ground
• AC Input Wire Gauge Range [AWG]: 8 AWG - 6 AWG
• Sleep (Night) Consumption [W]: 60
• NEMA Enclosure Rating: IP65 / NEMA 3R
• Cooling Method: Integrated Fans
• Ambient Temperature Range [°C(°F)]: -25°C to +60°C (-13°F to +140°F)
• Display: LCD Touch Screen
• Communication: Wi-Fi, LAN, CanBus, RS485
• Basic Warranty [Years]: 5
• Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B
• AC grid range [Hz]: 55-65
• Max. recommended PV power (@ module STC): 10400
