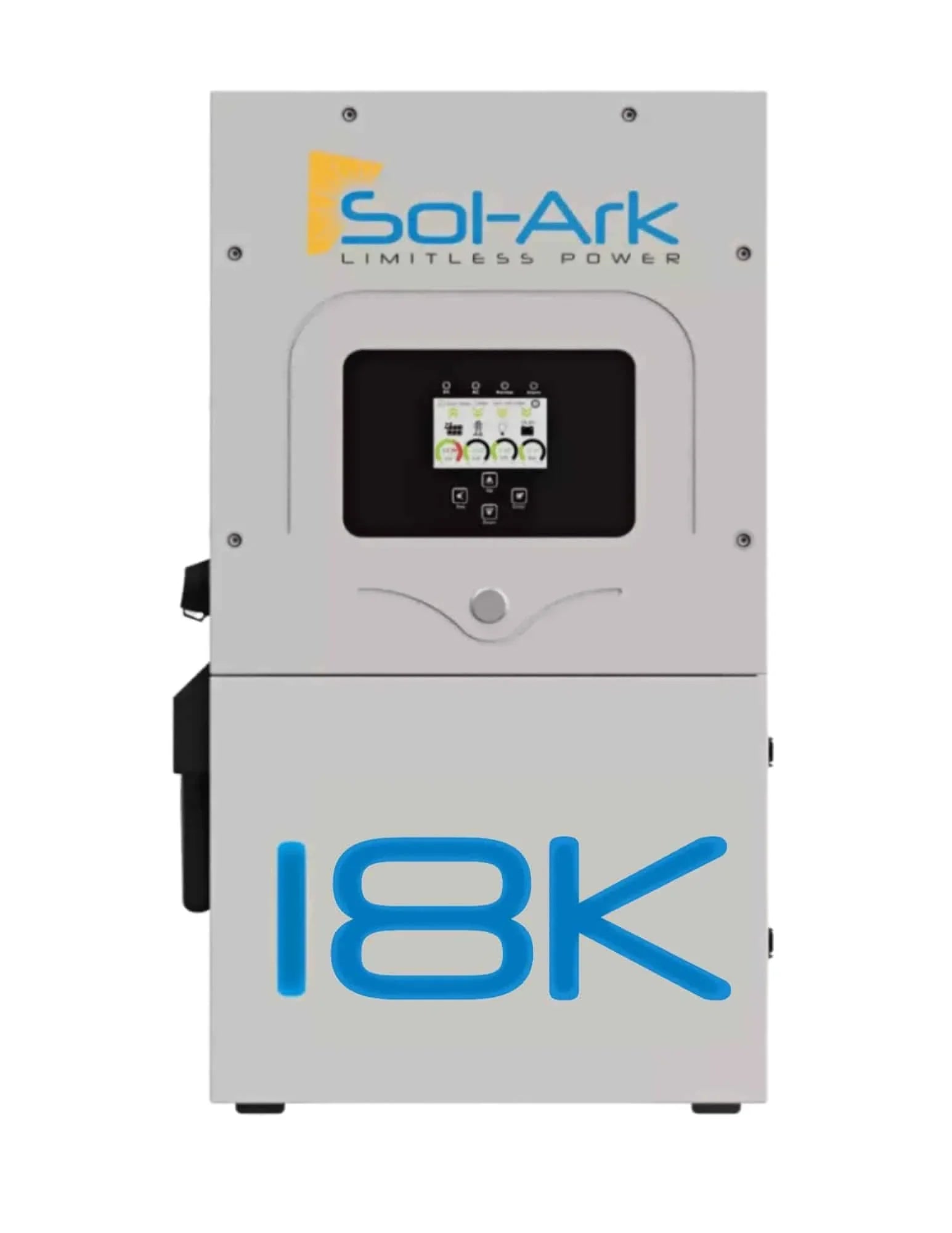

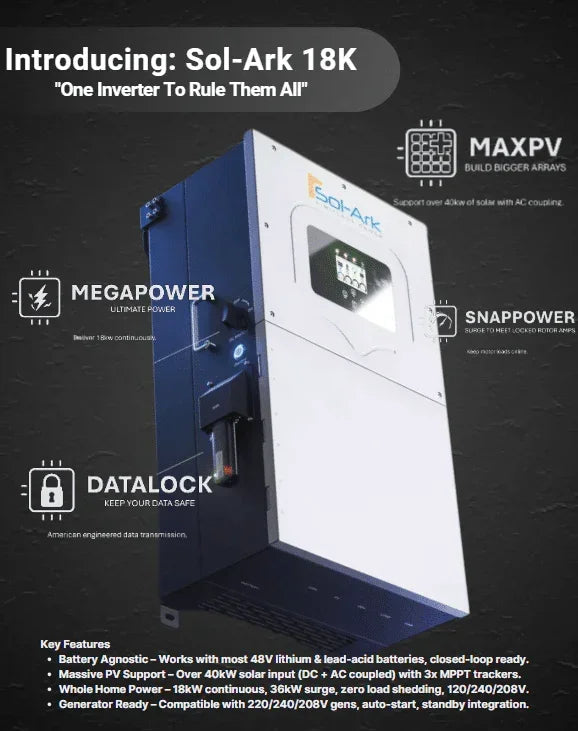

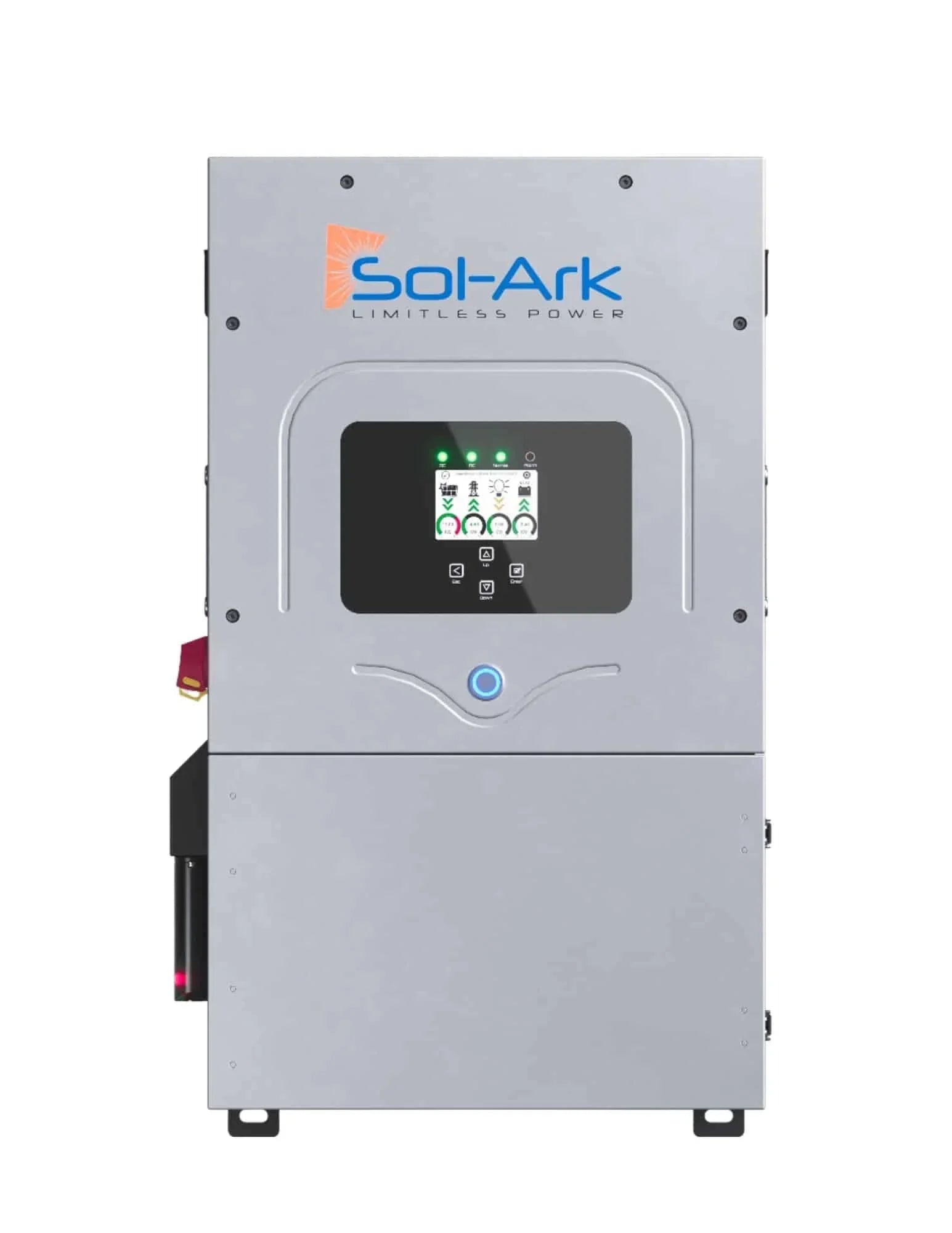

Sol-Ark 18K Hybrid Solar Inverter 18K-2P-N All in One

Sol-Ark 18K Hybrid Solar Inverter – All in One

Zero load shedding with 200A passthrough — no subpanel required!

The 18K is perfect for whole-home backup. Features include parallel stacking, grid sell, meter zero, time of use, smart load, AC coupling, & peak shaving.

All-In-One

The Sol-Ark 18K Outdoor Case is a pre-wired system with minimal additional hardware, your install stays simple and cost-effective.

Battery Agnostic

Sol-Ark inverters do not have expensive battery restrictions like other solar inverters do. The 18K works with a wide variety of 48V battery chemistries, from lead to lithium.

Highly Accelerated Life Testing

Proven to last well beyond the standard 10-year warranty.

Engineered, Serviced, And Tested In The USA

Talk to a U.S.-based engineer 7 days a week.

Applications

The best applications for the Sol-Ark 18K are whole-home backup, off-grid, grid-tied, and time-of-use savings.

• Grid-Tied Mode – Sell power back to the utility to reduce your electric bill
• Meter Zero Mode – Zero out your electric bill without adding an additional smart meter
• Time-Of-Use Mode – Use solar + batteries to minimize grid power usage when it’s most expensive
• Smart Load Mode – Programmable output for high-power off-grid loads or grid interaction
• Time-of-Use Loads – Run only when solar is optimal, using excess PV power when batteries are full
• Off-Grid Applications – battery agnostic
• AC Coupling – retrofits to existing grid-tied systems
• Battery Backup – seamless, zero load shedding

User Features And Integrations

• Color touch screen
• Remote monitoring from smart device
• Battery disconnect
• Battery temp sensor
• Auto-generator start
• Rapid shut down signal
• Current sensors
• Battery communication
• PV disconnect
• Wiring knockouts
• WiFi

SA-18K Specifications:

• Inverter Type: Hybrid (grid-tie, off-grid, battery backup)
• Output Power: 18,000W continuous / 36,000W surge
• Battery Voltage: 48V
• MPPT Inputs: 3
• Max Usable PV Input Power: 28,800W
• Efficiency: 97.6%
• Weight: 137 lbs
• Dimensions (H x W x D): 33.97" x 18.3" x 11.1"

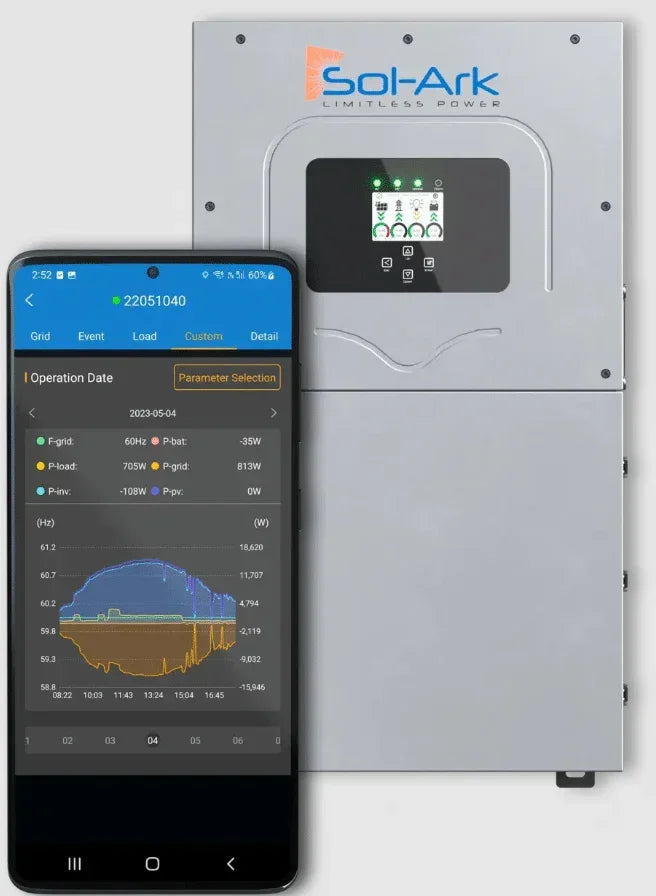

Monitor it from anywhere!

Literature and Downloads

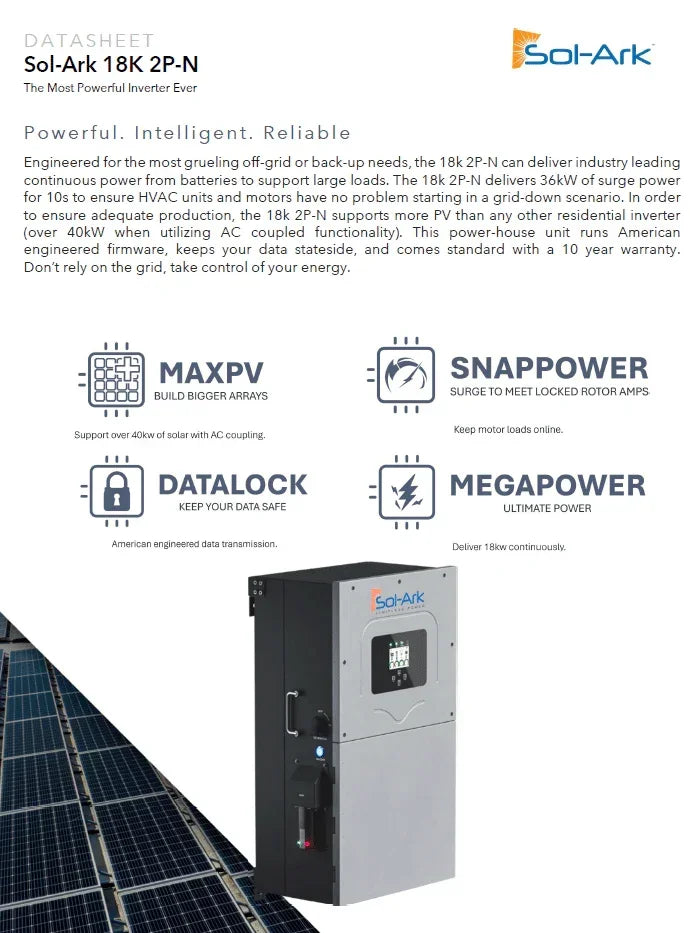

Sol-Ark SA-18K Specifications

Sol-Ark SA-18K Install Guide and Owner Manual

Sol-Ark Battery Communications Integration Guide

Sol-Ark Inverter Programming Guide

Sol-Ark 18K Warranty

Sol-Ark My Sol-Ark User Guide
