LG 16H Prime 16kWh High Voltage Battery Bundle with Growatt 7.6kW or 11.4kW Grid-Tie Inverter

LG RESU 16H Prime 16 kWh High-Voltage Battery + Growatt Inverter Bundle

Pair LG’s flagship high-voltage storage with Growatt’s flexible “MIN” inverter line to maximize solar harvest today and keep upgrade paths open for tomorrow.

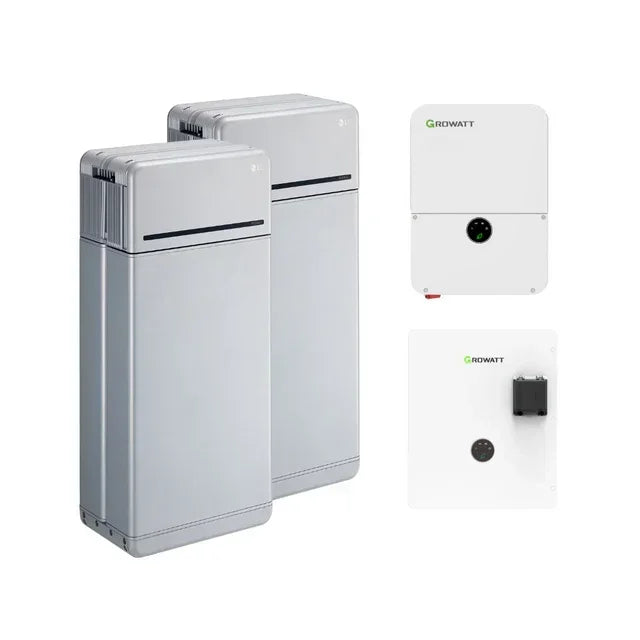

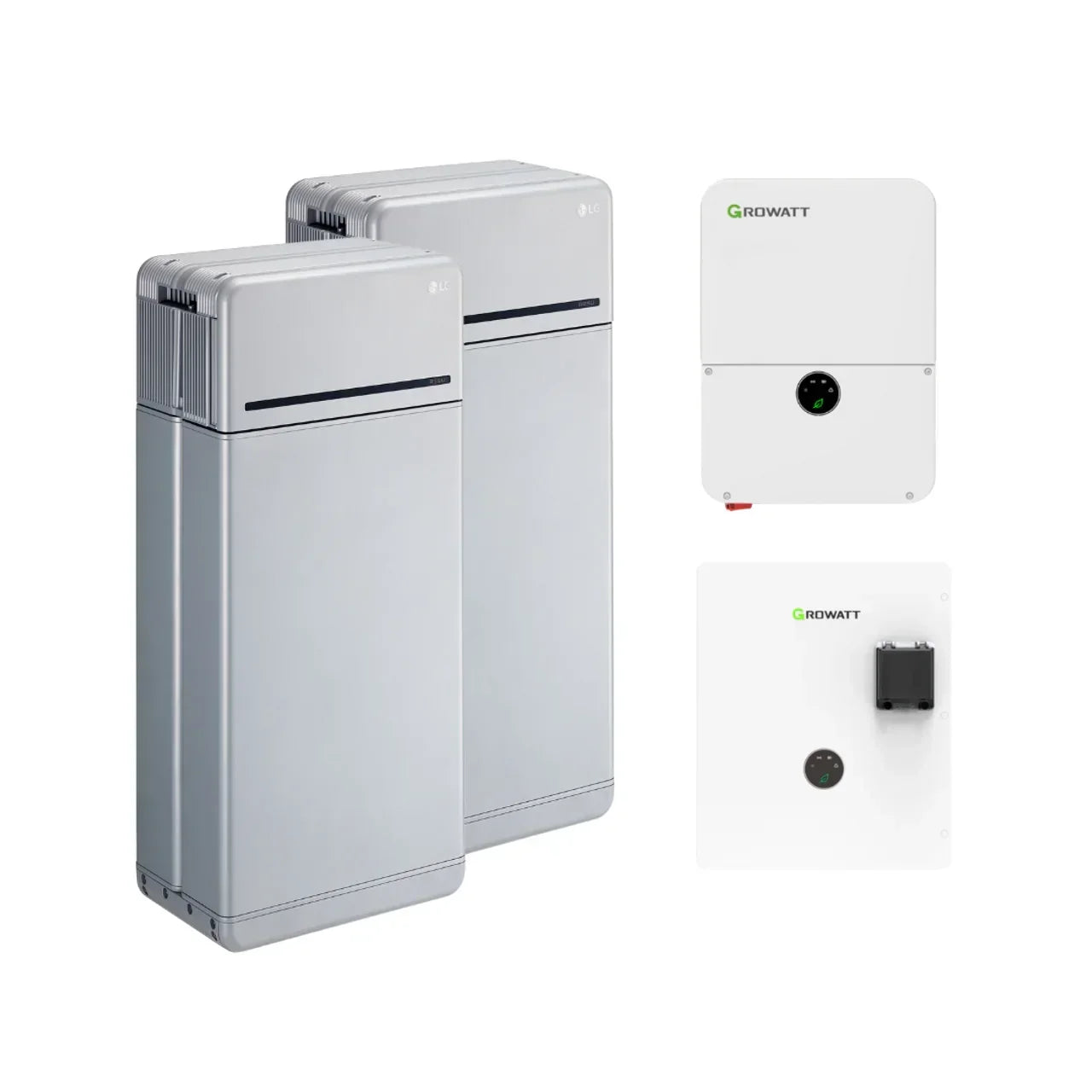

What’s in Every Bundle

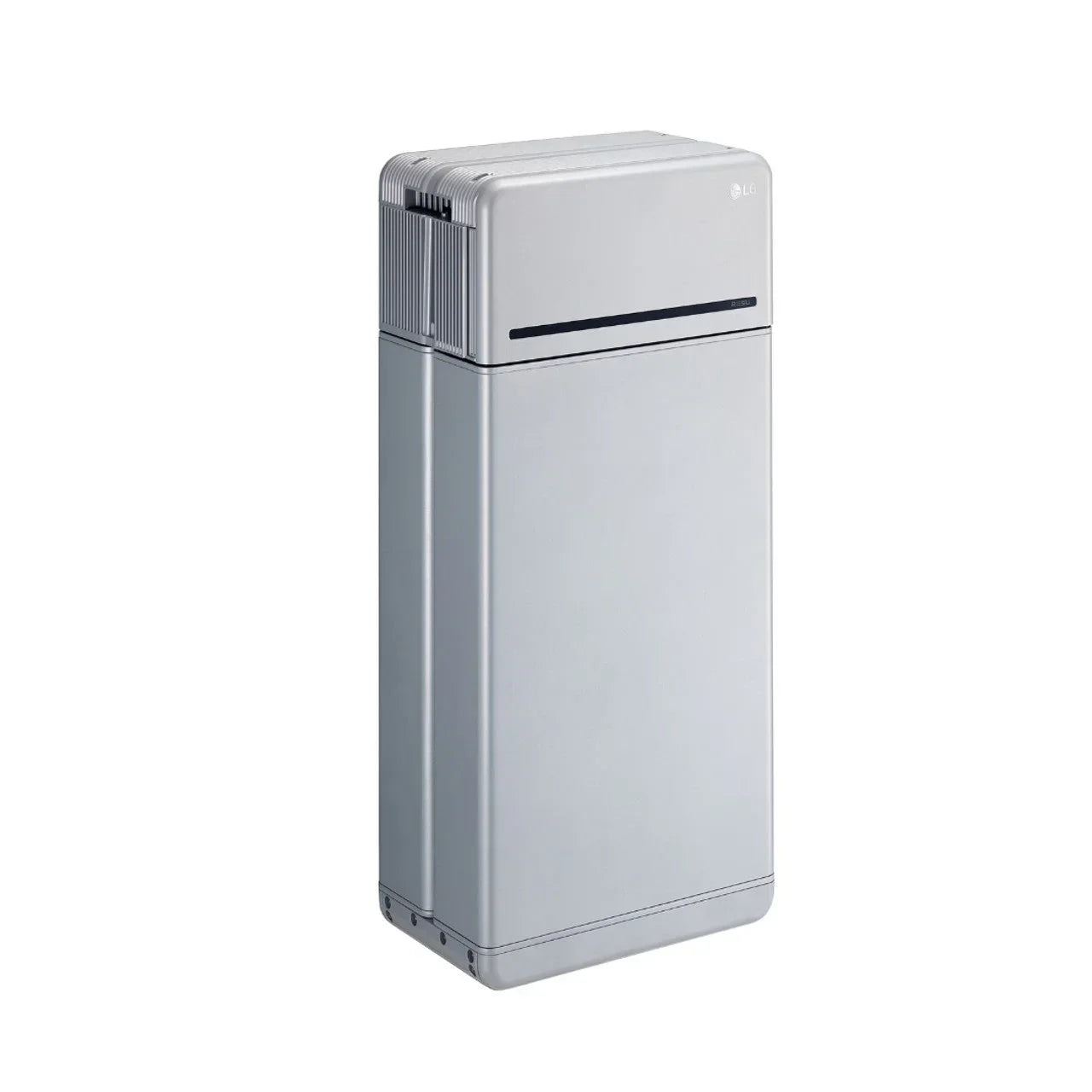

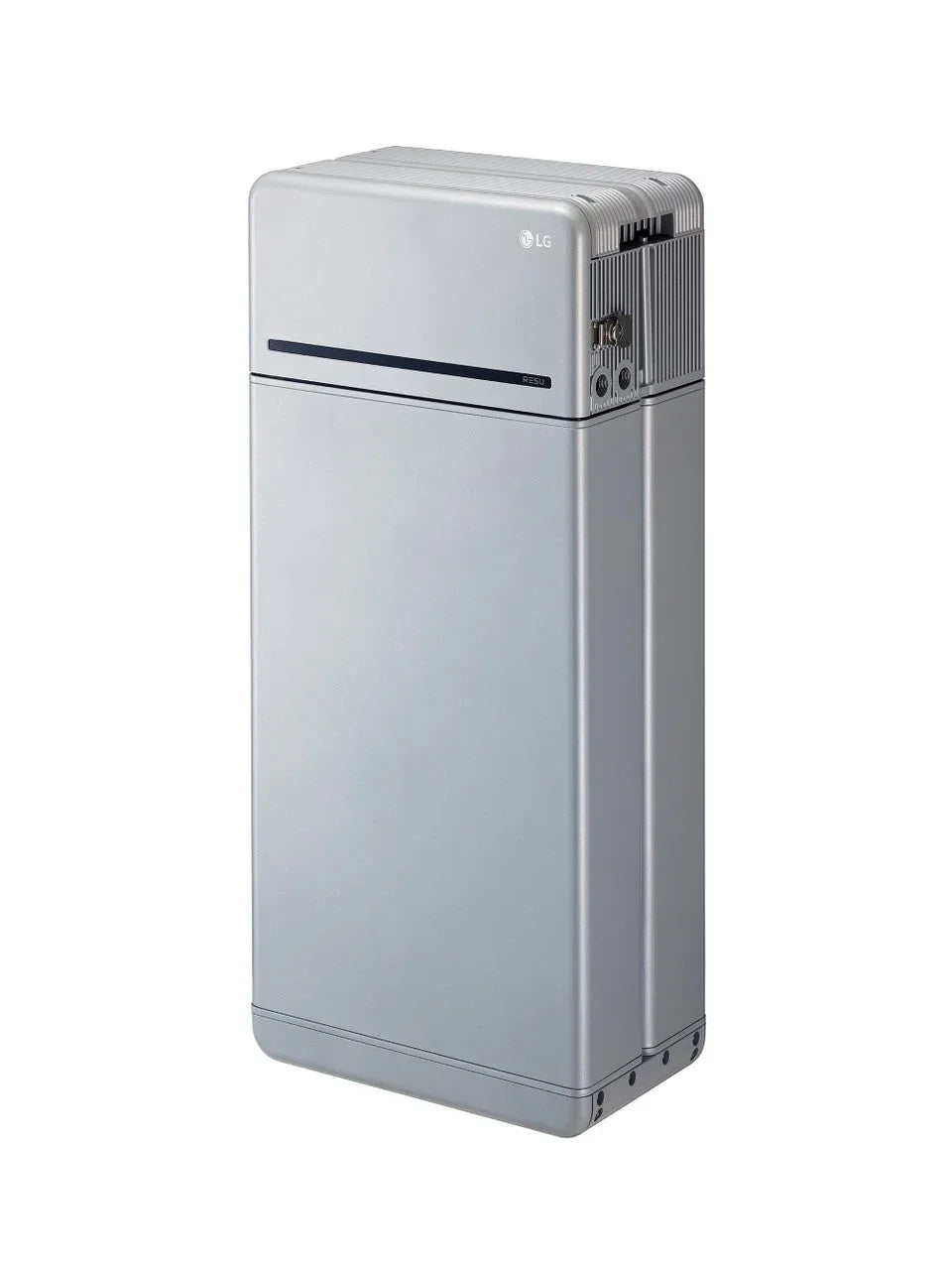

• LG RESU 16H Prime (16 kWh usable)


  • 16 kWh high-voltage (400 V) battery delivers fast-charging, reliable backup power.

  • Scalable to 32 kWh—parallel a second unit for extended runtime.

  • Advanced Li-ion + smart BMS maximize life span while guarding against heat, over-/under-charge, and short-circuits; rated for indoor or outdoor install.

  • Peak-shaving storage: bank daytime solar and discharge at night or during high-rate periods to cut utility costs.

• Growatt Cloud & ShinePhone™ monitoring
  • Real-time solar production, battery status, and consumption analytics
  • Remote firmware updates and diagnostics

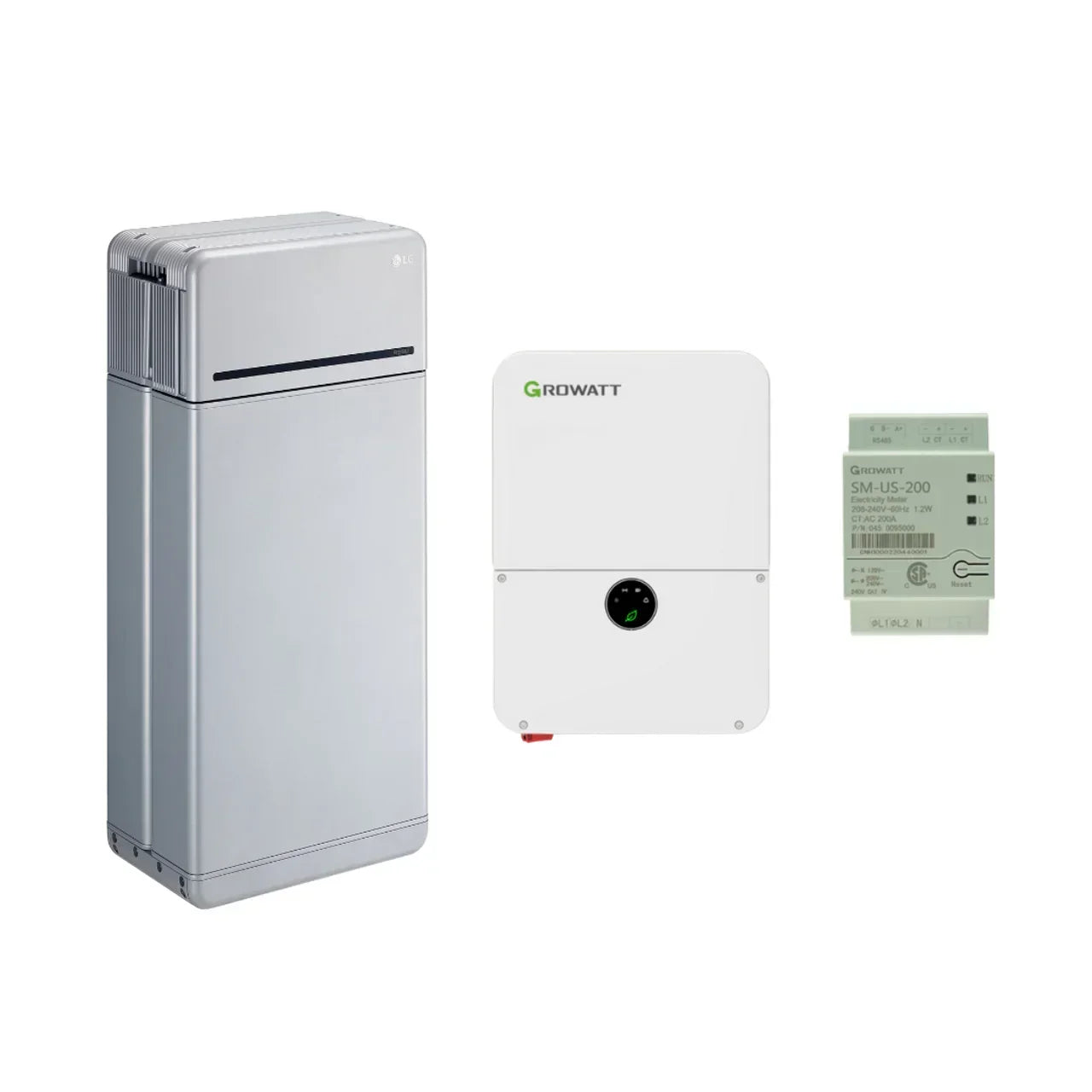

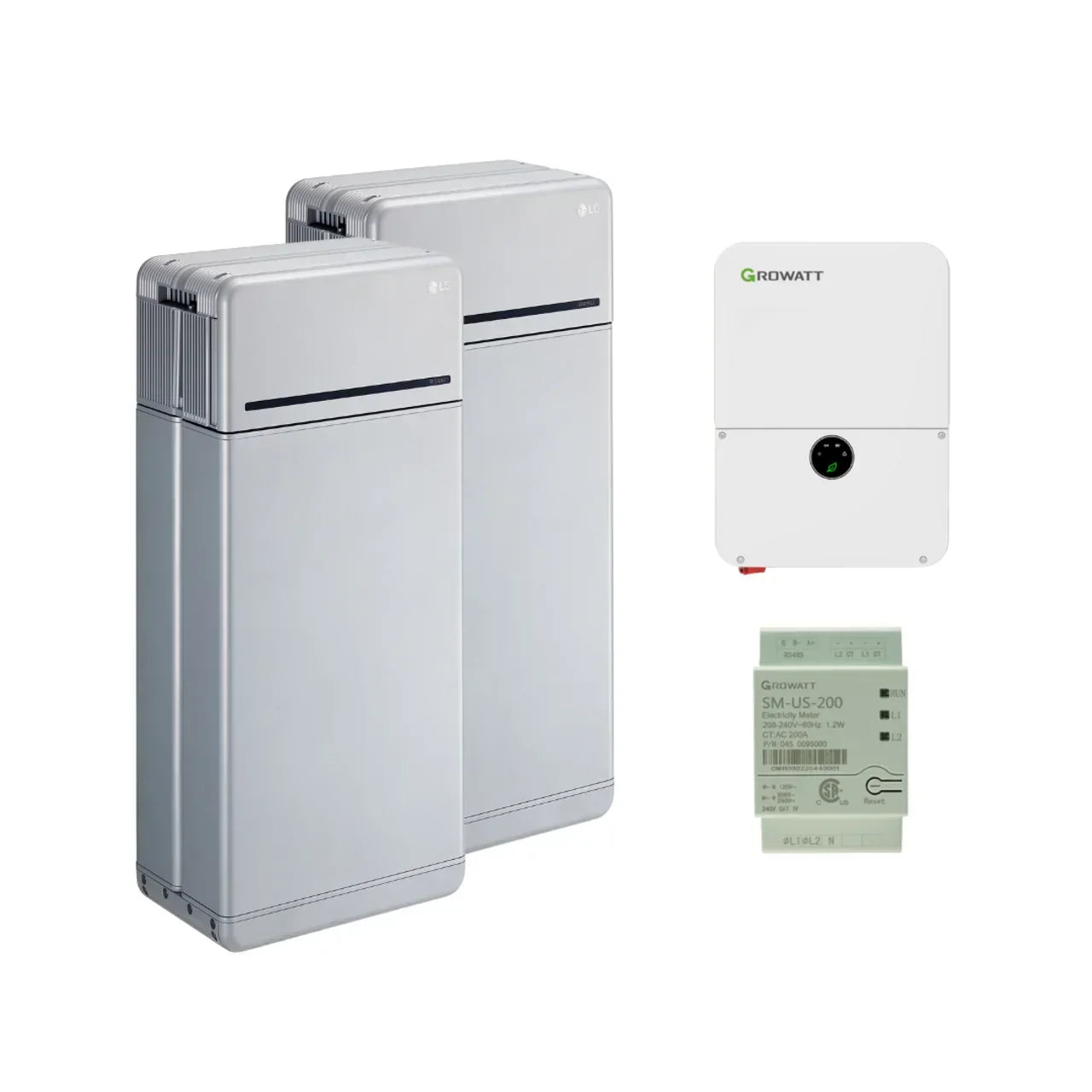

Option A — Growatt 7.6 kW Grid-Tie Package

Optimized self-consumption and export control (no backup power)

Includes:

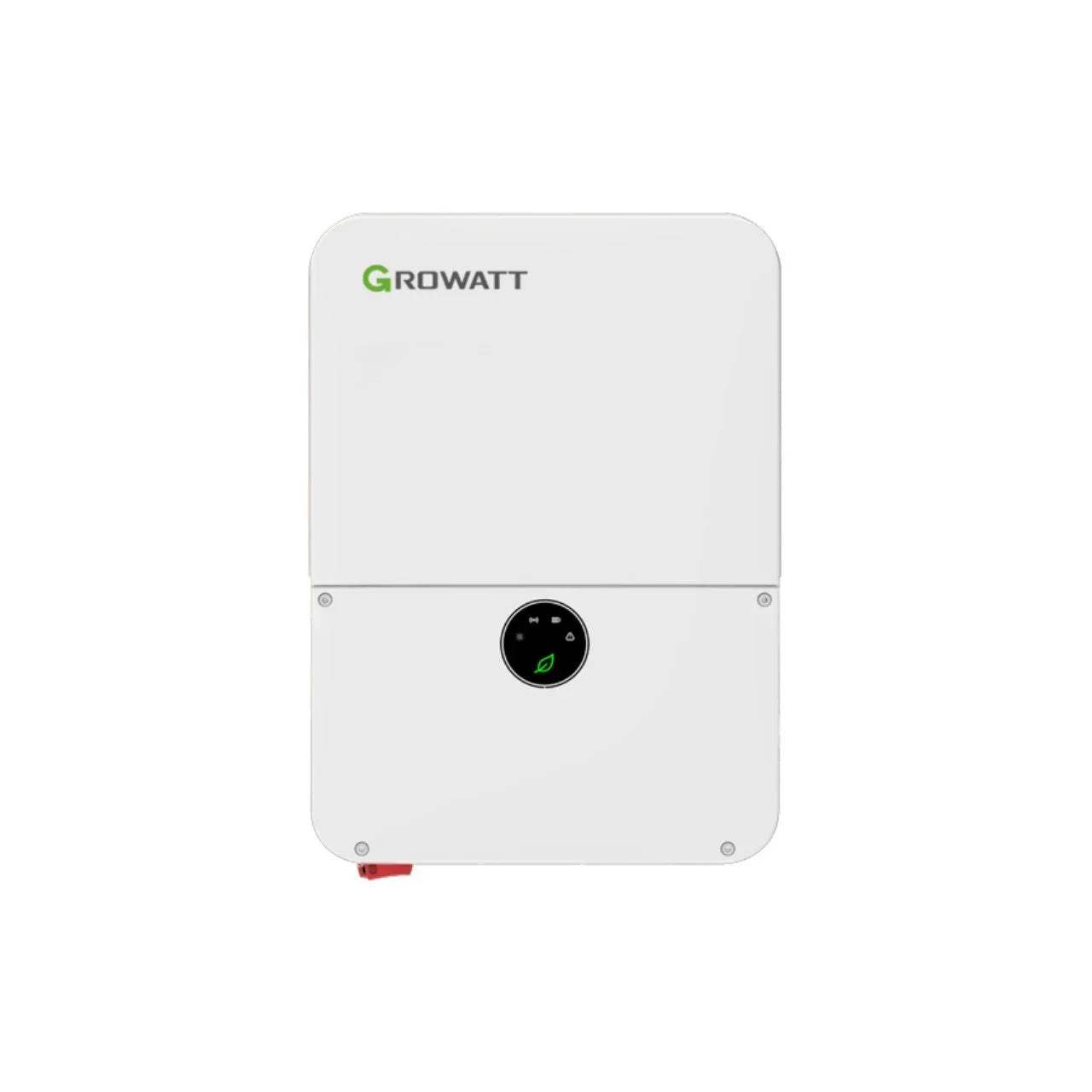

• Growatt MIN 7600TL-XH-US inverter (7,600 W AC, 3 MPPTs, 98 % CEC efficiency)

• Growatt SM-US-200 Smart Meter for household load sensing

Key Advantages

1. Time-of-Use shaping — charge or discharge the battery around utility peak rates.

2. Dynamic export limiting — throttle grid feed-in to comply with interconnection caps.

3. Future scalability — add a second RESU 16H Prime for 32 kWh total without inverter changes.

Note: This configuration shuts down during a grid outage; it is designed for energy management, not backup.

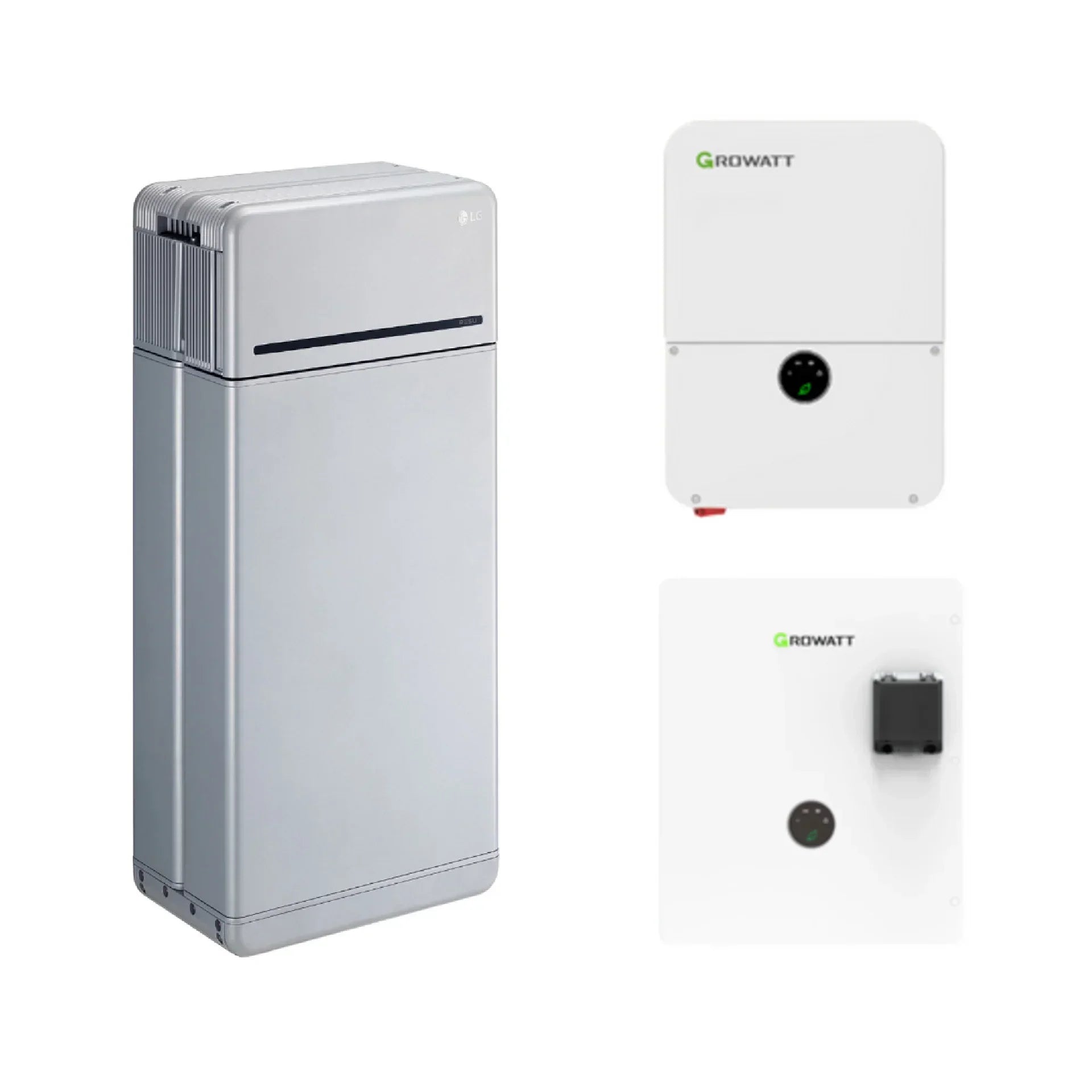

Option B — Growatt 11.4 kW Whole-Home Backup Package

Seamless power security with generator integration

Includes:

• Growatt MIN 11400TL-XH-US inverter (11,400 W AC, 4 MPPTs)

• Growatt SYN 200-XH-US automatic transfer switch (ATS)

Key Advantages

1. Sub-second switchover — the ATS isolates from the grid and powers all circuits from the battery.

2. Generator-ready — plug in a portable or standby gen-set for unlimited off-grid runtime.

3. Expandable power — parallel a second inverter for 22.8 kW AC and up to 64 kWh of LG storage.

Why Choose This Bundle?

• High-voltage efficiency: Thinner DC cables, lower conversion losses, better round-trip performance.

• Unified ecosystem: One app commissions inverter, battery, meter, and ATS.

• Bankable warranties: 10-year coverage from both LG Energy Solution and Growatt.

• Michigan-based tech support: Our design team can size your array, verify NEC compliance, and guide installation.

Need help deciding between the self-consumption kit and the whole-home backup kit? Let us know your load profile, outage history, and expansion goals—our technicians will tailor the perfect configuration for your project.
